Cross-Contamination Prevention Dispensing Booth With Anti-Static Measures

Cross-Contamination Prevention Dispensing Booth With Anti-Static Measures
Cross-Contamination Prevention Dispensing Booth With Anti-Static Measures Cross-Contamination Prevention Dispensing Booth With Anti-Static Measures

تصویر بزرگ :  Cross-Contamination Prevention Dispensing Booth With Anti-Static Measures

جزئیات محصول:
محل منبع: چین
نام تجاری: KELING
گواهی: CE
Model Number: KEL-DB
پرداخت:
Minimum Order Quantity: 1
قیمت: negotiable
Packaging Details: Plywood Packing
Delivery Time: 10 Working Day
Payment Terms: T/T
Supply Ability: 300

Cross-Contamination Prevention Dispensing Booth With Anti-Static Measures

شرح
سیستم کنترل: سیستم کنترل PLC مرحله فیلتراسیون: H14+F8+G4
درب: نوار پی وی سی کرتین راه فشار: فشار منفی
نام دیگر: غرفه به او: صفحه لمسی
فیلتر HEPA: نوع مینی پلات H14 سرعت هوا: 0.45m/s +_20 ٪ قابل تنظیم
برجسته کردن:

anti-static dispensing booth,cross-contamination prevention booth,static-free dispensing workstation

,

cross-contamination prevention booth

,

static-free dispensing workstation

Cross-Contamination Prevention Dispensing Booth With Anti-Static Measures
Product Description

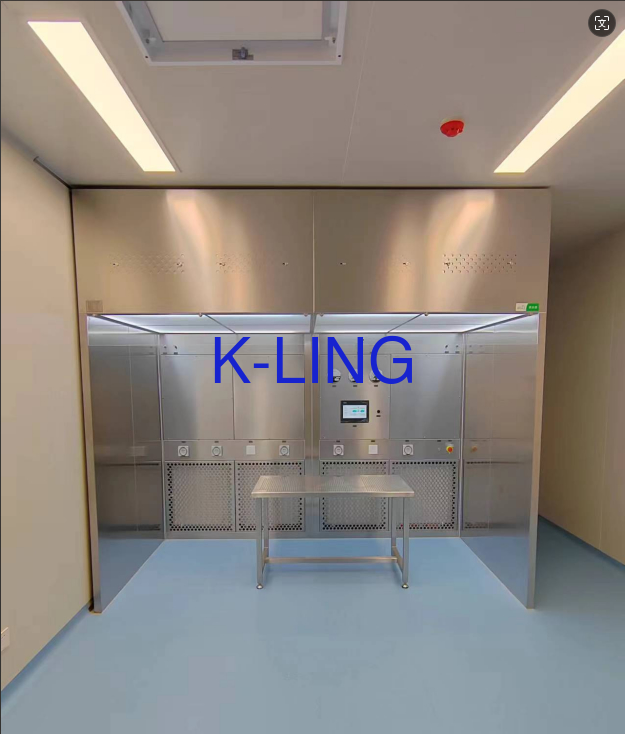

The Dispensing Booth, also known as a sampling booth, is a crucial piece of equipment commonly used in pharmaceutical factories for powder weighting applications. This booth provides a controlled environment for accurate and efficient dispensing of powders.

Equipped with advanced features, the Dispensing Booth is designed for both automatic and semi-automatic operations, catering to the varying needs of pharmaceutical production processes.

One notable attribute of the Dispensing Booth is its ceiling design, which can be configured with either a damping film or a diffuser plate. This design choice ensures proper containment and distribution of powders within the booth, minimizing the risk of cross-contamination and ensuring product quality.

For optimal performance, the Dispensing Booth is equipped with a powerful fan rated at 0.75KW, compatible with 380V/480V power supply and operating at 50/60HZ frequency in a 3-phase configuration. This fan provides efficient air circulation within the booth, maintaining a clean and sterile environment for powder handling.

Cross-Contamination Prevention Dispensing Booth With Anti-Static Measures 0
Features
  • Product Name: Dispensing Booth
  • HIM : Touch Screen
  • HEPA filter : Mini-pleat Type H14
  • Control system : PLC Control System
  • Ceiling : Damping Film Or Diffuser Plate
  • Application: Powder Weighting
Technical Parameters
Parameter Specification
Air speed 0.45m/s +/- 20% Adjustable
Operation Automatic Or Semi-automatic
Ceiling Damping Film Or Diffuser Plate
Door PVC Strip Curtain
Control System PLC Control System
Purification Rank ISO5 / Class 100
Name Dispensing Booth / Sampling Booth
HMI Touch Screen
Other Name Downflow Booth
Noise Level ≤65dB
Applications

Cosmetic production has high requirements for the purity of raw materials and the cleanliness of the production environment, and the weighing room in a cleanroom plays an important role in this process. Many cosmetic raw materials, such as active ingredients, fragrances, and pigments, are susceptible to contamination or may cause irritation to operators during weighing.

The negative pressure design of the weighing room prevents these raw material powders from spreading to other areas of the production workshop, protecting the health of operators. High-efficiency air filtration systems remove airborne contaminants, ensuring that raw materials remain uncontaminated during weighing and guaranteeing the quality of cosmetics.

At the same time, high-precision weighing equipment ensures accurate formulation ratios, resulting in stable cosmetic performance and quality. For example, when producing high-end skincare products, rare plant extracts require precise weighing. The cleanroom weighing room provides a clean and safe environment for this process, helping to enhance product quality and competitiveness.
